| CellChemistry | LiFePO4 |
| Module Energy(kWh) | 2.56 |
| Module Nominal Voltage (V) | 25.6 |
| Module Capacity(Ah) | 100 |
| Battery Module Qty in parallel. (Optional) | 1-128 |
| System Nominal Voltage (V) | 25.6 |
| System Operating Voltage (V) | 22.4~28.8 |
| System Energy (kWh) | 2.56~327.68 |
| System Usable Energy(kWh) | 2.5~320 |
| Working Temperature(°C) | Charge: -10~50/Discharge:-20~55 |
| Display | SOC Status indicator LED indicator |
1C DischargeMax discharge current:100A, simultaneously supplying power to multiple loads.

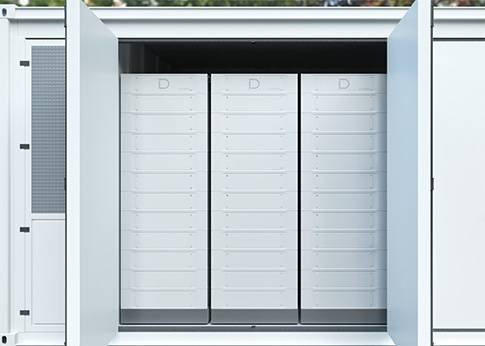

Flexible InvestmentSupports up to 128 units in parallel, with a total capacity of up to 327.68 kWh.
Smart BMSAuto ID. Millisecond level status monitor, real time battery management, and optimization.
Extended Service LifeOptimized cycle life exceeds 6000 cycles for long-lasting reliability
Easier Space LayoutBattery could be laid out freely, high space utilization.
Superior EfficiencyExperience maximum efficiency with up to 90% usable energy.
90% DOD, 0.5C charge & discharge at 25°C. System usable energy may vary due to system configuration parameters.
The current is affected by temperature and SOC.
3 The warranty is due whichever reached first of warranty period or life cycle power.
