| CellChemistry | LiFePO4 |
| Module Energy(kWh) | 16.07 |
| Module Nominal Voltage (V) | 51.2 |
| Module Capacity(Ah) | 314 |
| Battery Module Qty in parallel. (Optional) | 1-128 |
| System Nominal Voltage (V) | 51.2 |
| System Operating Voltage (V) | 43.2~57 .6 |
| System Energy (kWh) | 16.07~2056.96 |
| System Usable Energy(kWh) | 15.58~1994.24 |
| Working Temperature(°C) | Charge: -10~50/Discharge:-20~55 |
| Display | SOC Status indicator LED indicator |

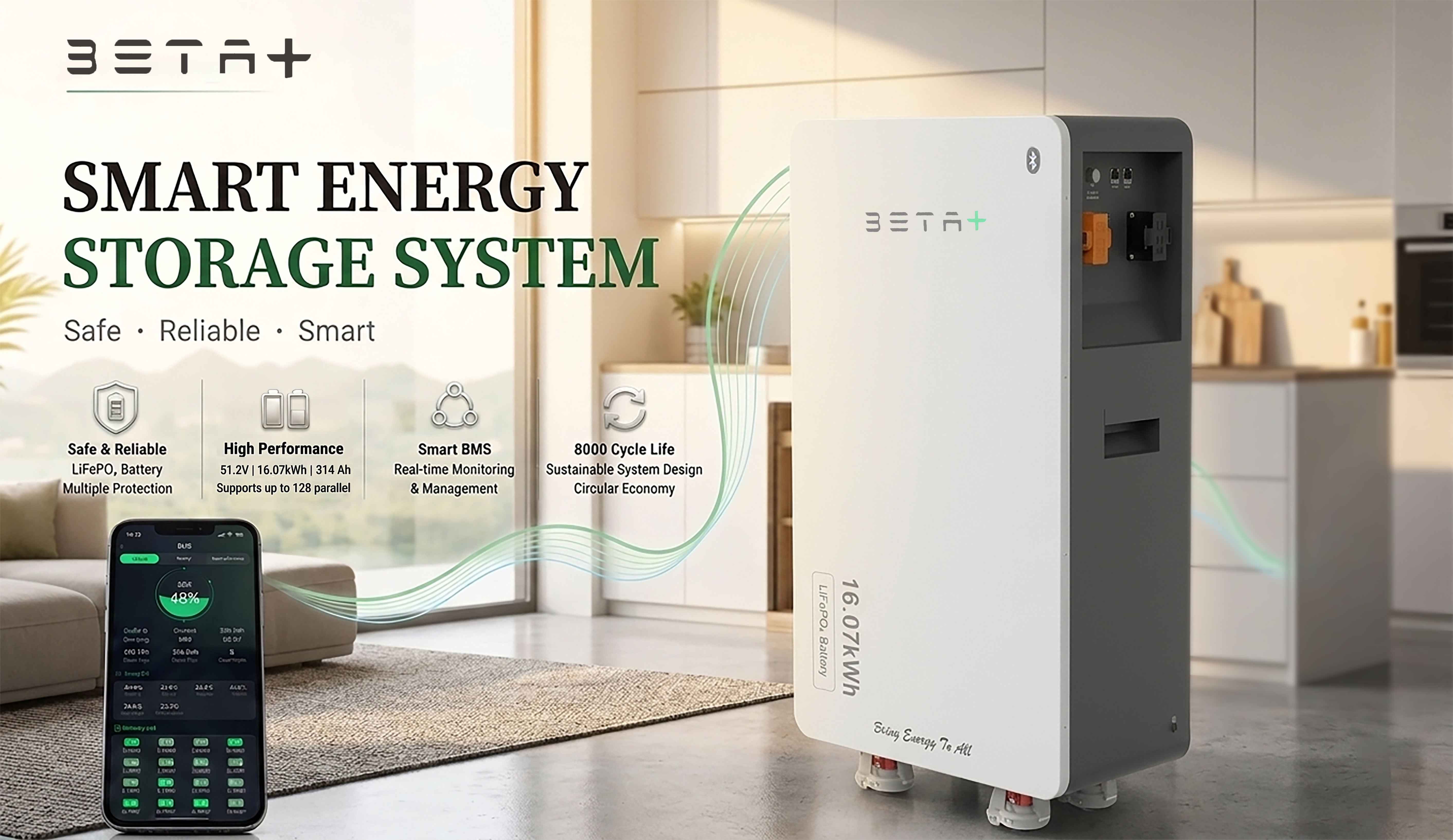

Breathing-Inspired DesignSeamless Screen-Free Integrated Design with an Elegant Appearance.
Flexible InvestmentSupports up to 128 units in parallel, with a total capacity of up to 2056.96 kWh.
Built-in BluetoothSupports Bluetooth monitoring; battery status can be viewed in real time via a mobile app.
Extended Service LifeOptimized cycle life exceeds 6000 cycles for long-lasting reliability
Easy InstallationAuto ID, universal wheels for easy movement, support floor mount.
Perfect CompatibilityCompatible to Single & Three Phase Inverters.
90% DOD, 0.5C charge & discharge at 25°C. System usable energy may vary due to system configuration parameters.
The current is affected by temperature and SOC.
3 The warranty is due whichever reached first of warranty period or life cycle power.
