| CellChemistry | LiFePO4 |
| Module Energy(kWh) | 5.12 |
| Module Nominal Voltage (V) | 400 |
| Module Capacity(Ah) | 100 |
| Battery Module Qty in parallel. (Optional) | 1-16 |
| System Nominal Voltage (V) | 400 |
| System Operating Voltage (V) | 345~455 |
| System Energy (kWh) | 5.12~81.92 |
| System Usable Energy(kWh) | 5~80 |
| Working Temperature(°C) | Charge: -10~50/Discharge:-20~55 |
| Display | SOC Status indicator LED indicator |
IP65 RatingFearless of outdoor installation,strong environmental adaptability.

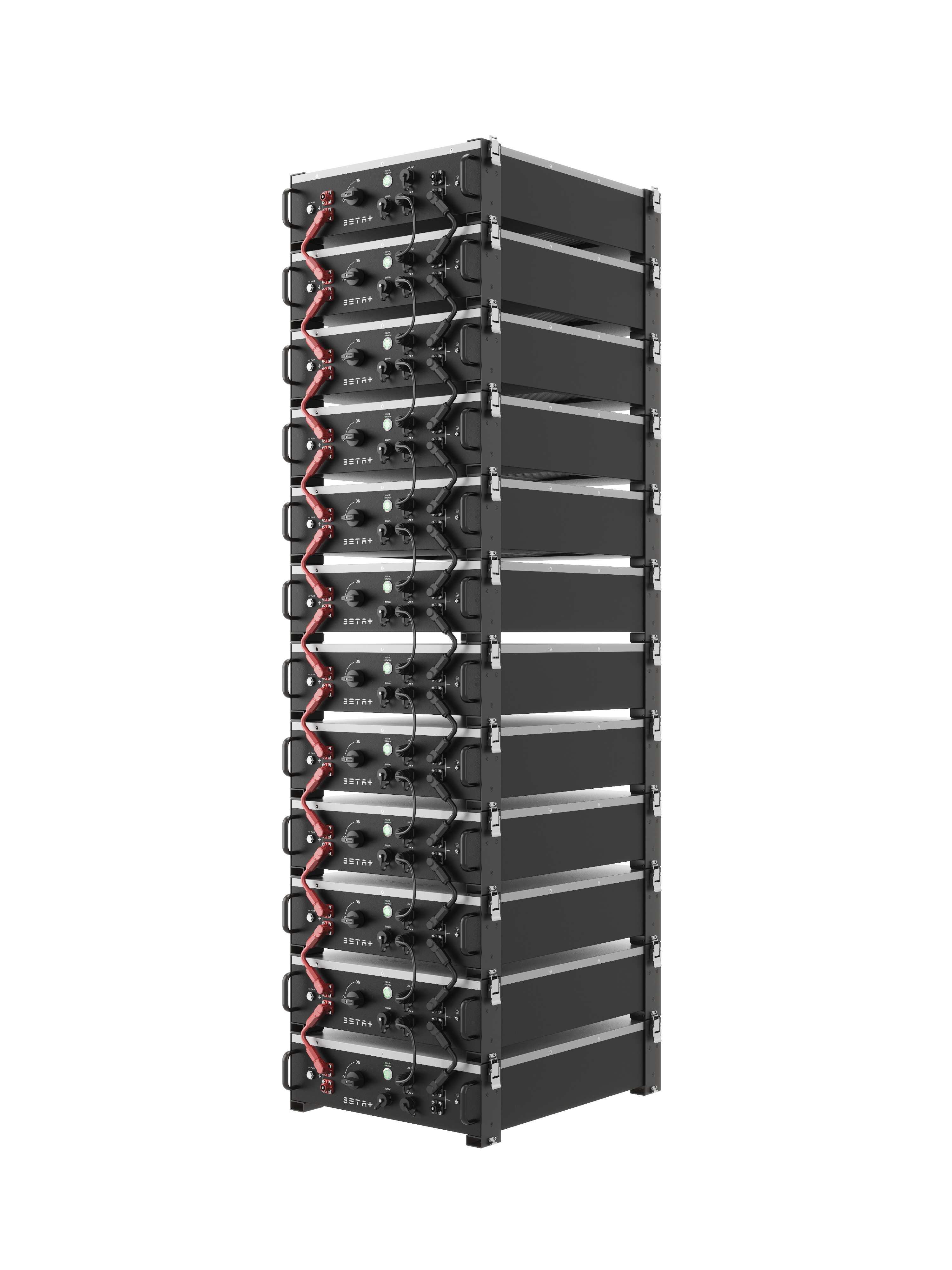

Flexible Investment5.12 kWh Modular Design, Scalable from 5.12 to 81.92 kWh.
Safe & Reliable5-layer Safety Protection . Optimized cycle life exceeds 6000 cycles for long-lasting reliability.
Aerosol Fire ExtinguisherReleases aerosol to instantly suppress thermal runaway and fire.
Easy InstallationAuto ID, 58 kg Battery Module. Support wall-mount, stack-mount, floor-mount, wall-mount.
Perfect CompatibilityHigh-voltage DCDC batteries support the mixed use of old and new batteries
90% DOD, 0.5C charge & discharge at 25°C. System usable energy may vary due to system configuration parameters.
The current is affected by temperature and SOC.
3 The warranty is due whichever reached first of warranty period or life cycle power.
