| CellChemistry | LiFePO4 |
| Module Energy(kWh) | 5.12 |
| Module Nominal Voltage (V) | 51.2 |
| Module Capacity(Ah) | 100 |
| Battery Module Qty in parallel. (Optional) | 1-128 |
| System Nominal Voltage (V) | 51.2 |
| System Operating Voltage (V) | 43.2~57 .6 |
| System Energy (kWh) | 5.12~655.36 |
| System Usable Energy(kWh) | 5~640 |
| Working Temperature(°C) | Charge: -10~50/Discharge:-20~55 |
| Display | SOC Status indicator LED indicator |
IP65 RatingFearless of outdoor installation,strong environmental adaptability.
1C DischargeMax discharge current:100A, simultaneously supplying power to multiple loads.
Flexible InvestmentSupports up to 128 units in parallel, with a total capacity of up to 655.36 kWh.
Smart BMSAuto ID. Millisecond level status monitor, real time battery management, and optimization.
One-button startWhen connected in parallel, pressing the switch on one battery will start the other batteries.

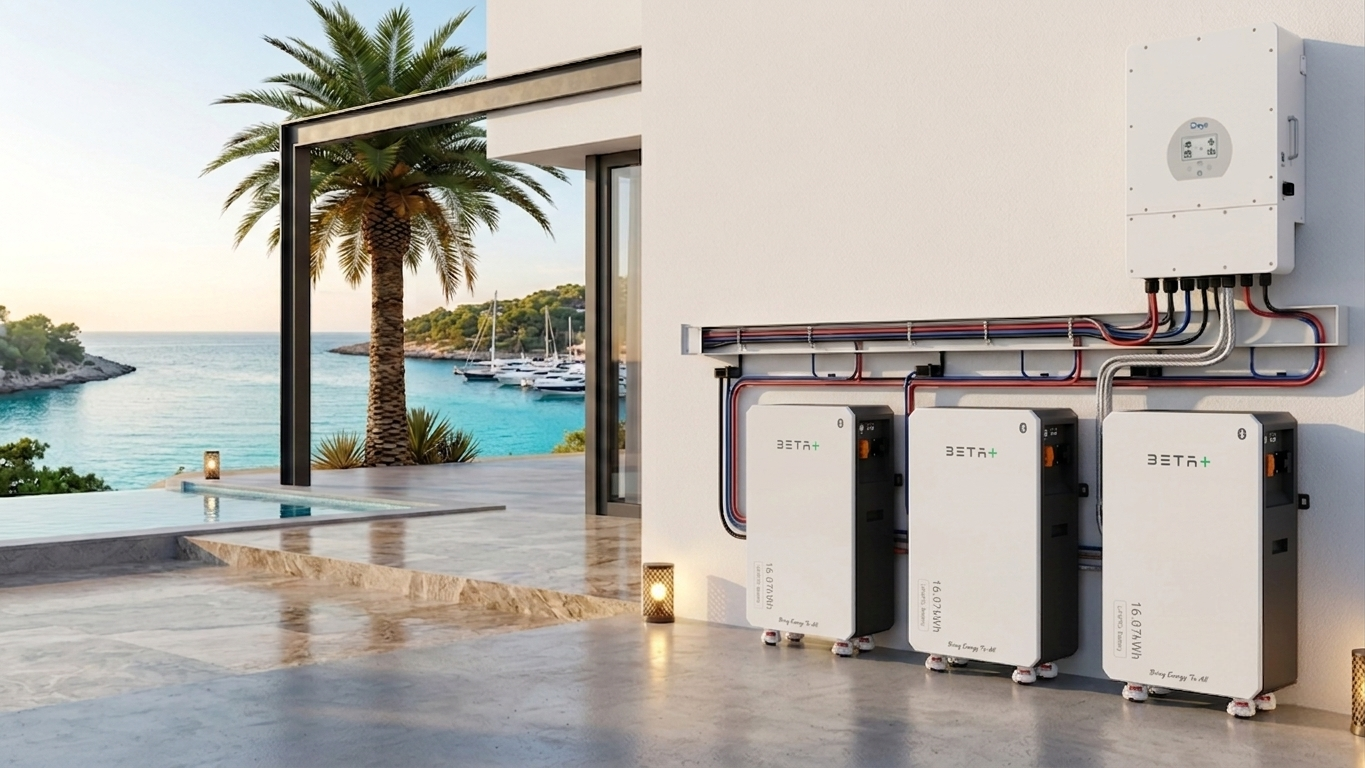

Multiple Install MethodSupport wall-mount, floor-mount, stack-mount,rack-mount, saves space.
90% DOD, 0.5C charge & discharge at 25°C. System usable energy may vary due to system configuration parameters.
The current is affected by temperature and SOC.
3 The warranty is due whichever reached first of warranty period or life cycle power.
